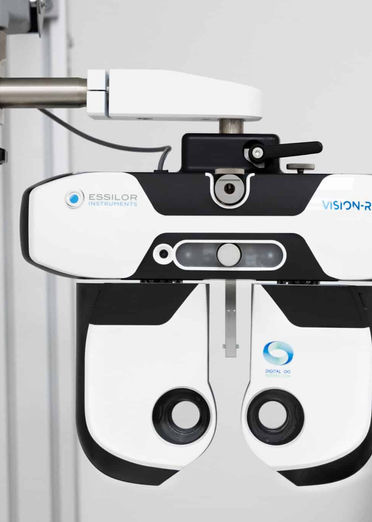

Vision-R™ 700
Essilor
Phoropter
The Essilor Instruments Vision-R™ 700 is an advanced automatic phoropter designed to make subjective refraction faster, more precise and easier to perform. Its Digital Infinite Refraction™ technology uses continuous lens power and simultaneous compensation of sphere, cylinder and axis to provide a more direct path toward the final prescription. Dedicated Smart Programs and Smart Tests guide practitioners through the refraction process, while customizable workflows, connected data transfer and a 10.4-inch touchscreen help integrate the system into modern clinical practice. Its compact design, silent lens changes and wider field of vision are also designed to create a more comfortable experience for patients.
• Interpupillary distance: 49–80 mm at far distance in 0.50 mm steps
• Near-vision convergence: Automatic
• Vertex distance: 4.0–30.0 mm in 0.1 mm steps, monocular, camera measured
• Sphere: -20.00 D to +20.00 D
• Cylinder: Up to 8.00 D depending on lens combinations
• Standard mode increments: Minimum 0.12 D; adjustable to 0.12 / 0.25 / 0.50 / 1.00 / 2.00 D
• Intelligent mode: Multiple smaller and larger increments rounded to 0.25 D
• Axis: 0°–180° in 1° increments, with adjustable steps
• Prism: 0–20 Δ in 0.1 Δ increments, with adjustable steps
• Retinoscopic lenses: +1.50 D / +2.00 D
• Fog lenses: +1.50 D / +2.00 D
• Jackson cross cylinders: ±0.25 D / ±0.50 D
• Fixed cross cylinders: ±0.50 D
• Maddox rods: Red, horizontal and vertical
• Red/green filters: Red right eye / green left eye
• Polarized filter: Linear and circular
• Phoropter head weight: 7.7 lb
• Console: 11.0 × 8.7 in.; 10.4-inch display; 6.6 lb
• Power supply: 6.4 × 7.6 × 2.3 in.; 2.2 lb
