Vision-S™ 700
Essilor
Refraction Station

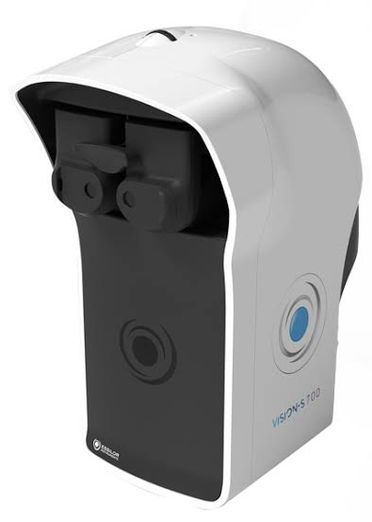

The Essilor Vision-S™ 700 is an immersive refraction station designed to bring subjective refraction, distance simulation and patient engagement together within one compact system.
Its Digital Infinite Refraction™ technology combines a patented liquid-lens optical module with Smart Programs and algorithms to support a fast, guided refraction process. Continuous and simultaneous power changes help compensate sphere, cylinder and axis as the examination progresses, providing a more direct route toward the final prescription.
Unlike a traditional refraction room, the Vision-S 700 uses patented distance-simulation technology to reproduce near and far viewing conditions within the device itself. This eliminates the need for the conventional 20-foot or 6-metre patient-to-chart distance and allows practices to perform refraction within a significantly smaller footprint.
The system also incorporates immersive, life-like visual scenes that allow patients to experience and compare prescription changes in more realistic situations, helping create a more engaging and intuitive refraction experience.
Key Features
Digital Infinite Refraction™ technology
Patented liquid-lens optical module
Guided subjective refraction
Approximately 3-minute refraction with Smart Programs
Continuous and simultaneous lens-power changes
Automatic compensation of sphere, cylinder and axis
Built-in near- and far-distance simulation
No traditional 20 ft / 6 m chart distance required
Ultra-compact standalone design
Immersive wide-field patient experience
Prescription before-and-after comparisons
Camera-based vertex-distance measurement
Automatic near-vision convergence
Guided Smart Programs and algorithms
Dedicated console with 10.4-inch display
Technical Specifications
Far Pupillary Alignment: 49–80 mm
Near Pupillary Alignment: 55–80 mm
Vertex Distance: 4–30 mm
Sphere Range: -20.00 D to +20.00 D
Cylinder Range: Up to 8.00 D depending on lens combination
Axis: 0–180°
Prism: 0–20 Δ
Jackson Cross Cylinders: ±0.25 D / ±0.50 D
Fixed Cross Cylinder: ±0.50 D
Station Dimensions: 25 × 13 × 22 in
Station Weight: 35 lb
Console Display: 10.4 in
Console Weight: 7 lb
Power Input: 100–240 V, 50/60 Hz
